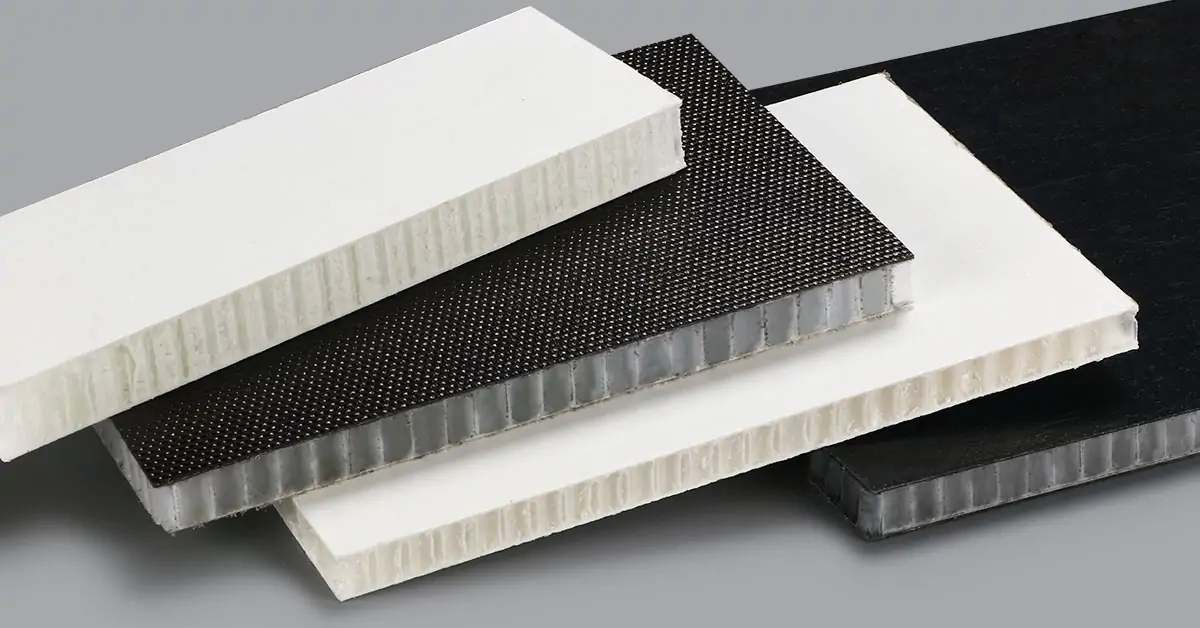

FRP Honeycomb Panels for Truck Body

Grey Whale is a professional manufacturer and supplier, providing customized FRP honeycomb panel solutions based on different truck body sizes, insulation requirements, and application environments. We support custom thickness, dimensions, surface finishes, and core materials to meet various transportation needs. With ready stock availability and fast delivery capability, Grey Whale helps customers shorten project lead times and improve production efficiency.

Lightweight & High Strength Composite FRP Honeycomb Panels

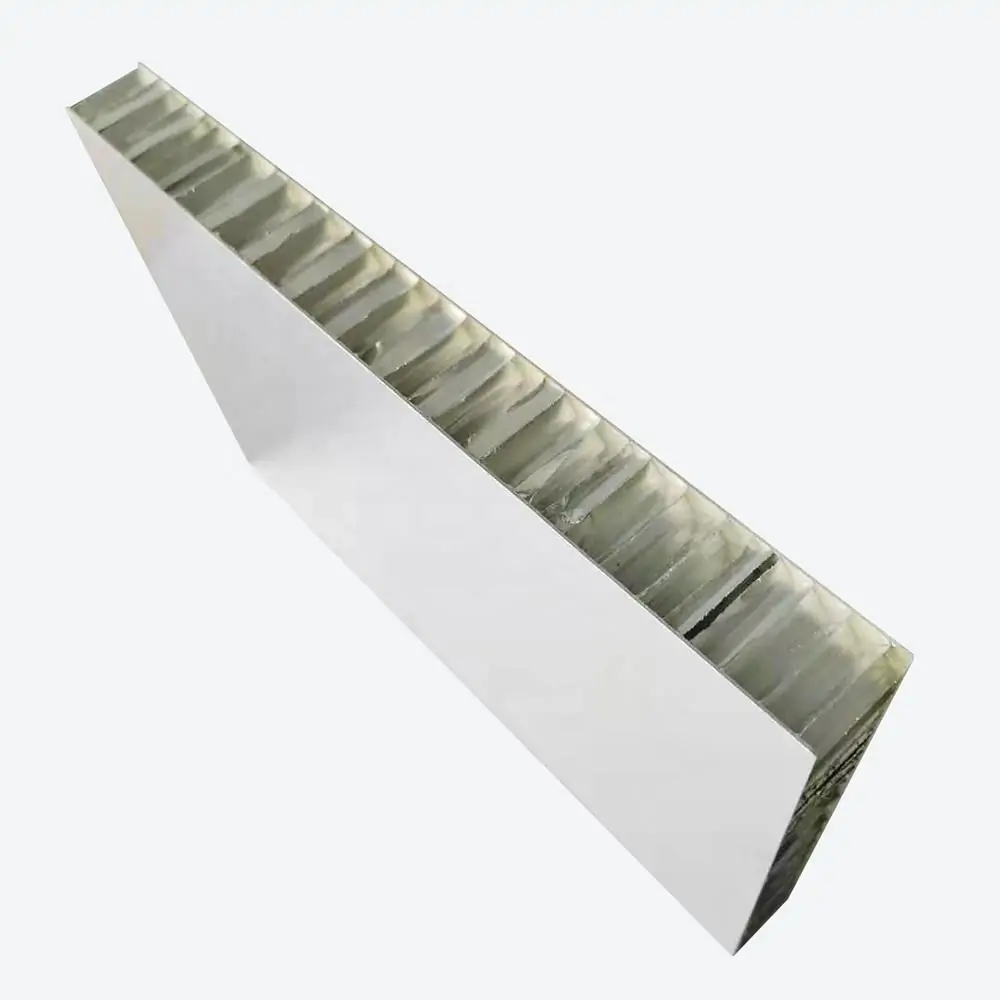

FRP honeycomb panels are lightweight composite sandwich panels made of fiberglass reinforced plastic (FRP) skins and a honeycomb core structure.
They are widely used in industries requiring high strength, low weight, and structural stability, especially in truck body manufacturing, trailers, and modular transport systems.
The honeycomb structure provides excellent rigidity while significantly reducing overall weight, making it one of the most efficient materials for modern vehicle body construction.

Panel Thickness: 15–100 mm (customizable)
Width: Up to 3200 mm
Length: Max 12000 mm
Surface Material: High-strength FRP skin with honeycomb core structure

Structure

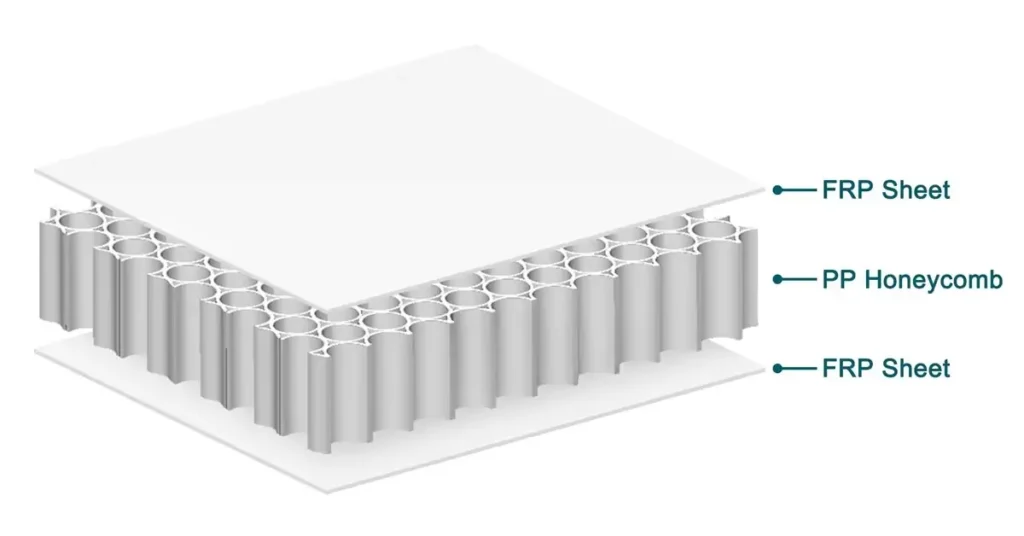

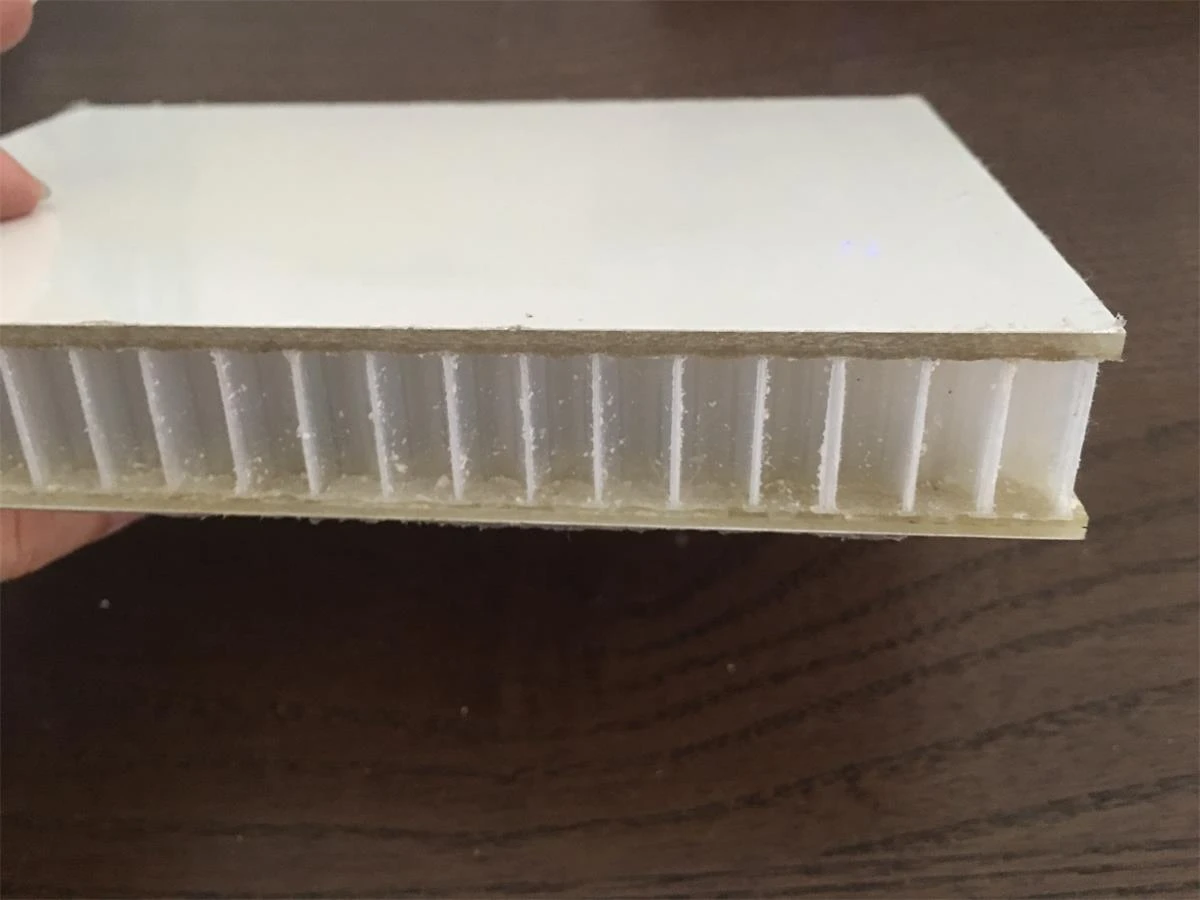

FRP honeycomb panels feature a typical sandwich structure, combining fiberglass reinforced plastic (FRP) skins with a lightweight honeycomb core.

The outer layers are made of glass fiber reinforced resin sheets, providing high strength, impact resistance, and corrosion protection. The core is usually polypropylene (PP) honeycomb, offering excellent stiffness while significantly reducing weight.

These layers are bonded using high-performance adhesive or thermal bonding processes, ensuring strong structural integrity and long-term durability.

This lightweight yet rigid structure makes FRP honeycomb panels ideal for truck bodies, trailers, and other applications requiring high strength-to-weight performance.

Products Details

Specifications

The following specification table provides the basic technical parameters of Grey Whale FRP Honeycomb Panels for truck body applications, including panel thickness, dimensions, surface materials, and structural performance. All specifications can be customized according to different vehicle types, insulation requirements, and transportation conditions to meet your project needs.

Category	Parameter	Typical Value / Range
Basic Structure
Face Skin Material	–	Fiberglass reinforced plastic (FRP / GRP)
Core Material	–	Polypropylene honeycomb core (PP Honeycomb Core)
Bonding Method	–	Unsaturated polyester adhesive / polyurethane adhesive / thermal welding
Surface Finish	–	Glossy / Matt / Anti-slip / Embossed / Gelcoat decorative surface
Color Options	–	White / Grey / Blue / RAL custom colors
Dimensions
Thickness Range	mm	10–150
Width	mm	≤ 3200
Length	mm	≤ 12000
Weight (12 mm Panel)	kg/m²	Approx. 4.7
Physical & Mechanical Properties
Core Density	kg/m³	80–120 (core)
Compression Strength	MPa	≥ 3.6
Shear Strength	MPa	≥ 1.4
Bending Modulus	MPa	4400
In-plane Tensile Strength	MPa	≥ 1.5
Thermal & Environmental Performance
Service Temperature	°C	Unsaturated polyester adhesive/polyurethane adhesive / thermal welding

Advantages

FRP Honeycomb Panels combine lightweight construction, high structural strength, excellent insulation performance,
and long service life, making them an ideal solution for modern truck body manufacturing.

Features of Fiberglass Honeycomb Panel

Advanced honeycomb core design provides superior strength while being lighter than traditional plywood panels.

FIBERGLASS REINFORCED

Durable fiberglass outer skins sandwich the honeycomb core, enhancing overall structural strength and service life.

EASY FABRICATION

Can be processed with standard tools and is compatible with various resin lamination systems, making installation and customization simple.

VERSATILE MARINE SOLUTION

Ideal for flooring, wall panels, and structural applications in boats, campers, and trailers where weight reduction is critical.

Applications

Our FRP honeycomb sandwich panels are widely used in refrigerated truck bodies, dry cargo trucks, trailers, and mobile workshops.
and specialty vehicle manufacturing, where lightweight, insulation, and durability are required.

Refrigerated Truck Bodies

Provide excellent thermal insulation and lightweight performance for cold chain transportation of food, pharmaceuticals, and temperature-sensitive goods.

Dry Freight Truck Bodies

Offer high structural strength and impact resistance for general cargo transportation while reducing overall vehicle weight and fuel consumption.

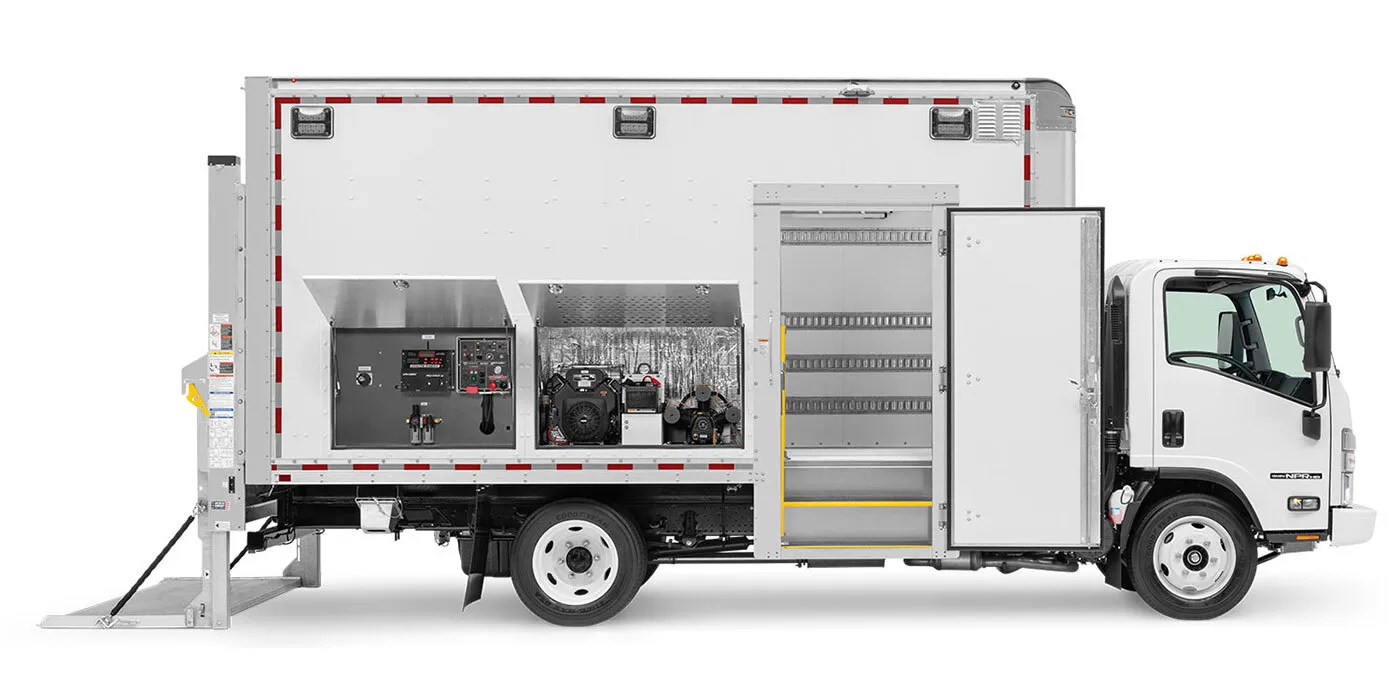

Specialty & Mobile Service Vehicles

Suitable for mobile workshops, emergency vehicles, and customized transport units requiring durable, corrosion-resistant, and easy-to-clean panel structures.

FAQs

Find quick answers about FRP honeycomb panel specifications, customization options,
delivery, and truck body applications.

What’S The Payment Terms?

A 50% T/T as a deposit, balanced before shipment arranged. We’ll show you the photos of the products and packages before you pay the balance. T/T L/C Western Union acceptable…other way can be negotiated

What About Your Delivery Time? Can We Receive The Goods On Time?

A: Usually around 3-5 weeks after the order is confirmed. It also depends on the total quantity of your order.

During the production process. We will report the production progress to you at any time.

How Can I Get A Sample From You For Quality Checking?

A: Kindly provide us with your technical details, and then we will offer a sample according to your specifications. Another way is to send your samples to us, and we will make a counter sample for you within one week.

Do You Support Customized Products?

A: Yes, if you want to buy the product without any idea, we could recommend you some products according to your application, if you have your own idea, tell us, any thought acceptable, we’ll try our best.
