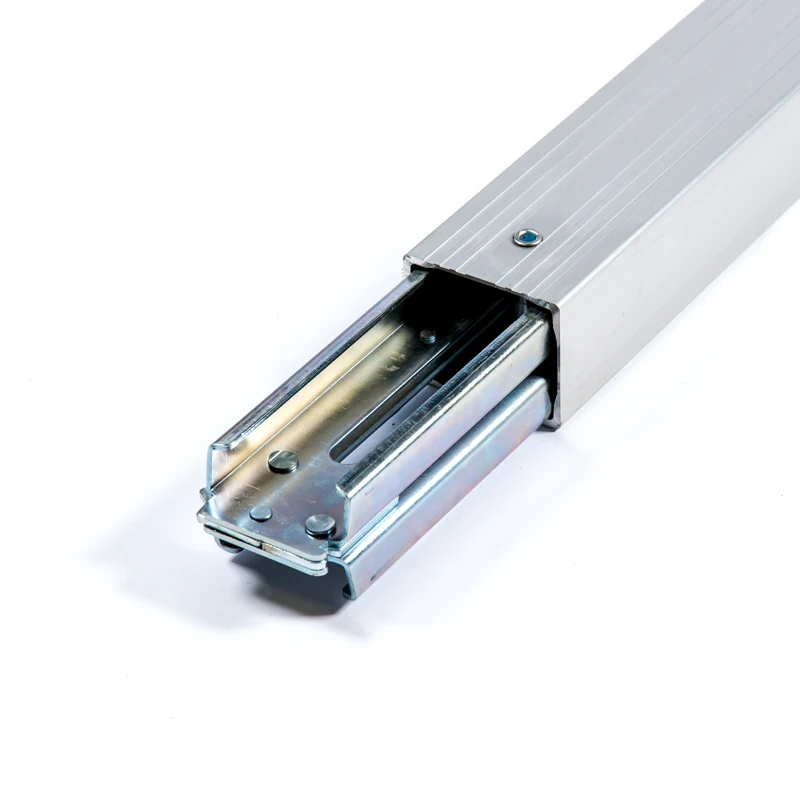

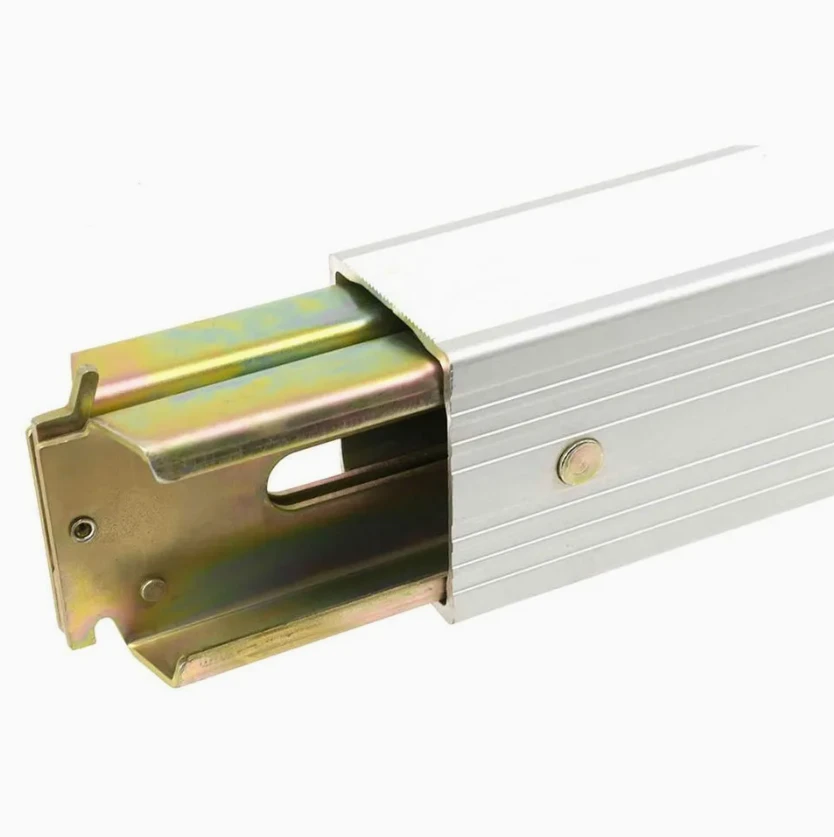

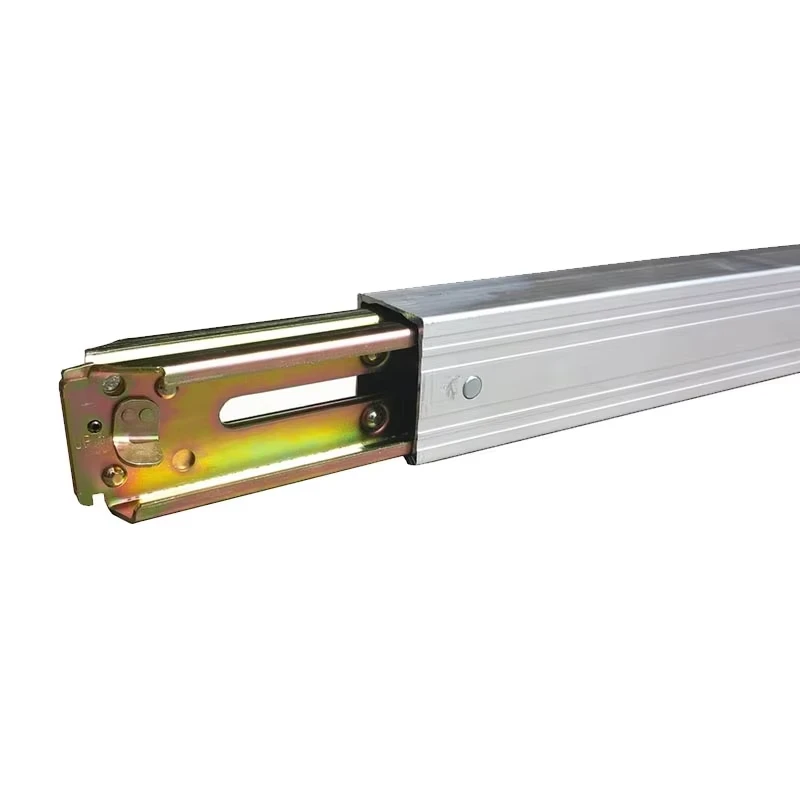

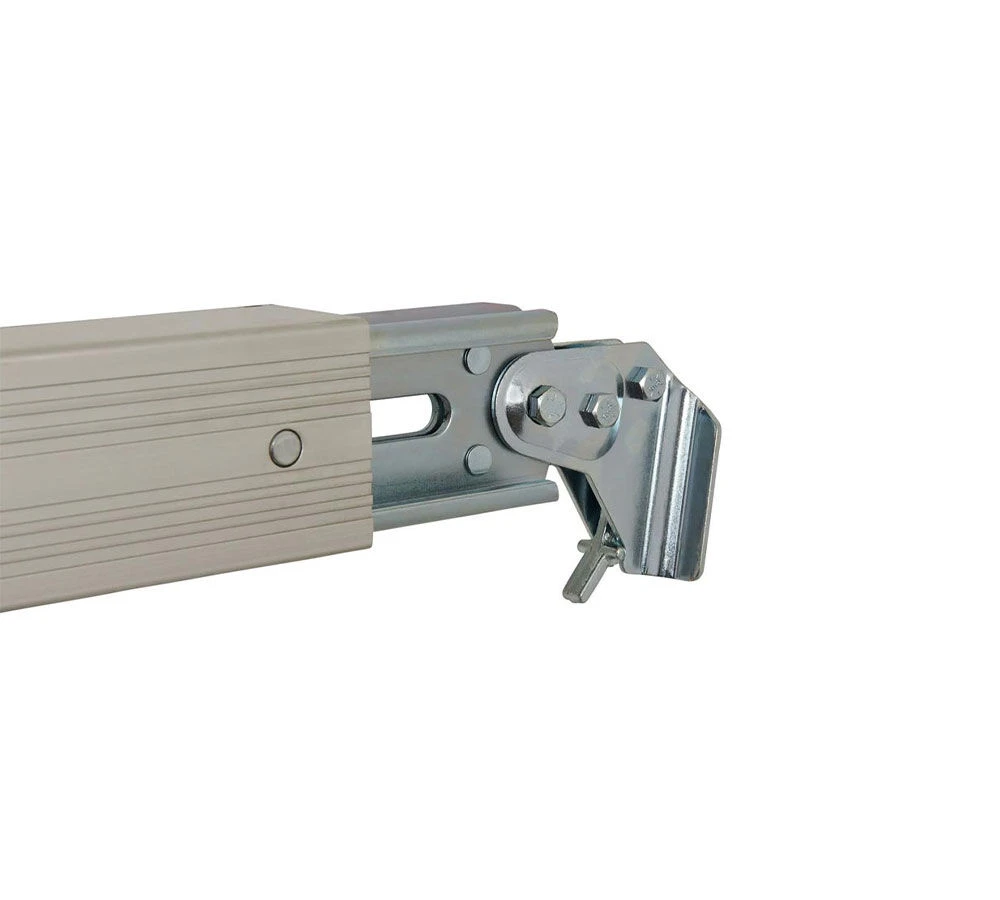

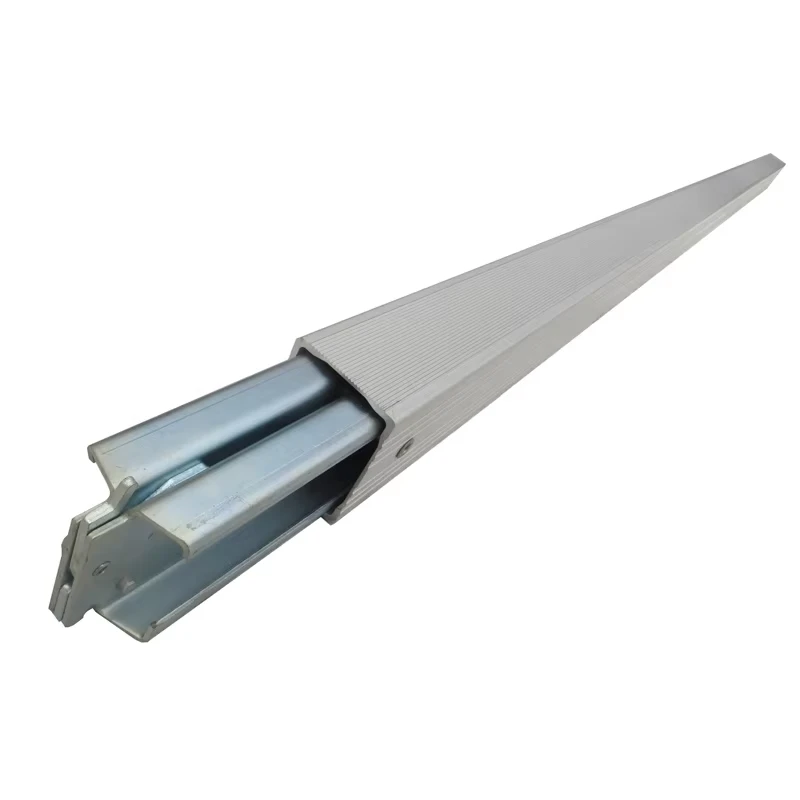

Cargo Decking Beams for Trucks

Cargo decking beams are designed to maximize cargo space utilization and improve transport safety through efficient load separation. Cargo decking beams (also known as load decking beams or decking bars) are horizontal support bars installed inside truck bodies or trailers.

Cargo Decking Beams for Truck & Trailer Cargo Control

Cargo decking beams are essential cargo control tools used to create secure and efficient load systems inside trucks and trailers. They allow you to divide cargo space into multiple levels, helping maximize loading capacity while preventing goods from shifting during transport.

Grey Whale offers high-quality cargo decking beams designed for durability, flexibility, and compatibility with global logistics systems.

Create additional loading levels
Secure cargo during transportation
Optimize space utilization
Improve safety in logistics operations

Our Cargo Decking Beam Types

We offer a complete range of decking beam solutions to meet different load capacities and transport requirements.
We provide a full range of decking beam solutions to meet different transport needs:

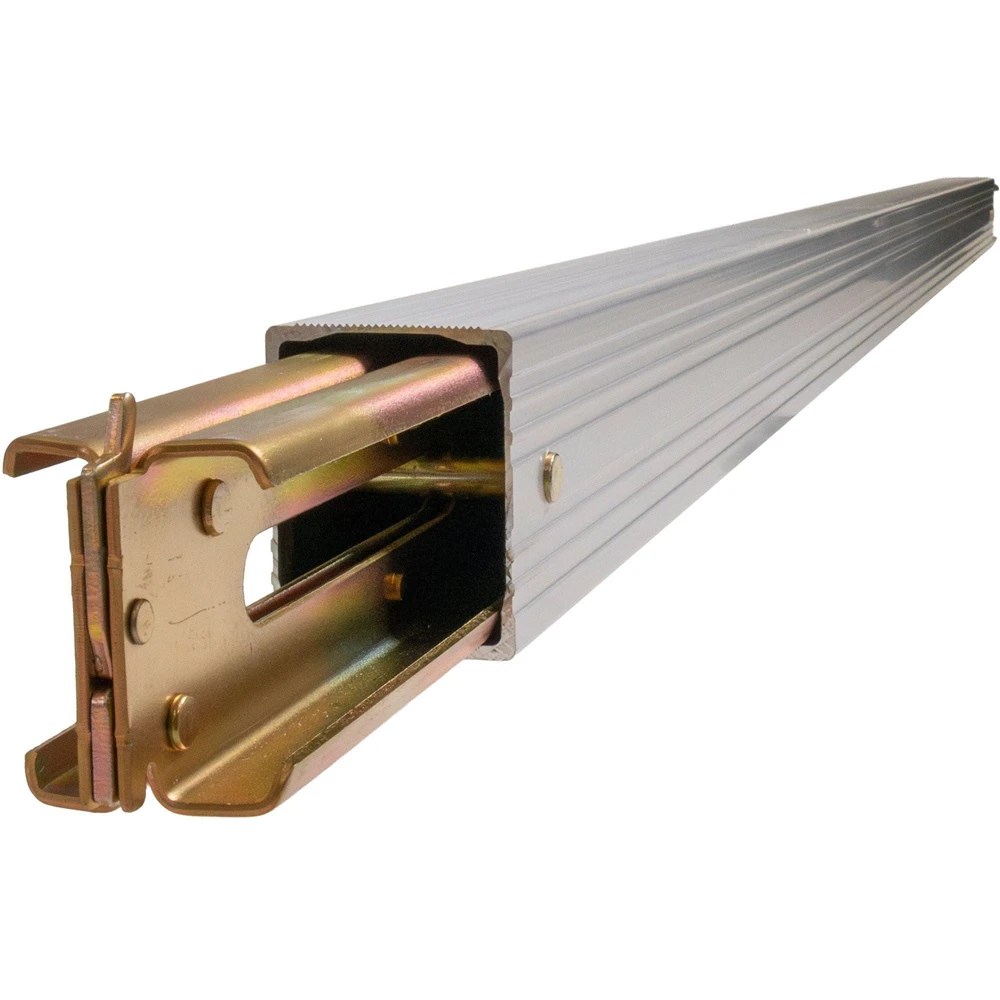

Light Duty Aluminum Decking Beam

Light duty aluminum decking beams offer lightweight and reliable cargo support, with a breaking strength of up to 2,000 lbs. Ideal for flexible and medium-duty applications.

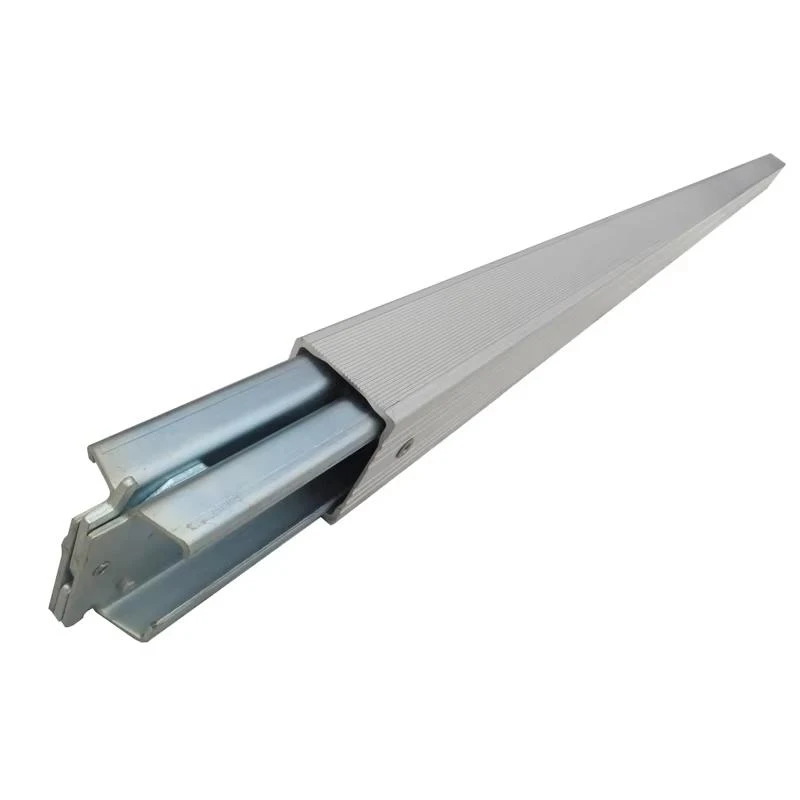

Heavy Duty Decking Beams

Heavy duty decking beams provide strong support for cargo securing and load decking, with a breaking strength of up to 3,000 lbs. Placement depends on load configuration.

Steel Decking Beam

Steel decking beams provide strong and durable cargo support, ideal for heavy-duty securing and preventing load shifting in trailers and trucks.

Specifications

Our decking beams are engineered to meet international standards for strength, durability, and flexibility.

Type	Item No.	Length (inch)	Length (mm)	Work Load Limit (lbs)	Net Weight (kg)
Light Duty Aluminum Steel Decking Beam	GWDB101	86″ – 97″	2184 – 2464	2000	7.5
	GWDB102	91″ – 102″	2311 – 2591	2000	7.7
	GWDB103	92″ – 103″	2311 – 2616	2000	7.8
Heavy Duty Aluminum Steel Decking Beam	GWDB101H	86″ – 97″	2184 – 2464	3000	8.5
	GWDB102H	91″ – 102″	2311 – 2591	3000	8.8
	GWDB103H	92″ – 103″	2311 – 2616	3000	8.9
Steel Decking Beam	GWDB101S	86″ – 97″	2184 – 2464	3000	11.1
	GWDB102S	91″ – 102″	2311 – 2591	3000	11.6
	GWDB103S	92″ – 103″	2311 – 2616	3000	11.7

Noted:Work Load Limit is based on evenly distributed load conditions. Proper beam quantity and placement should be determined according to actual cargo configuration. We also offer customization services to accommodate different trailer &truck dimensions and application needs.

Features

Cargo decking beams are designed to enhance load safety and space efficiency in truck and trailer operations.
Built for strength, flexibility, and ease of use, they provide a reliable way to create additional deck
levels while keeping cargo secure during transit.

Adjustable length

Easily extends to fit different trailer widths for versatile applications.
High load capacity: Strong construction supports heavy cargo without bending or deformation.

High load capacity

Strong construction supports heavy cargo without bending or deformation.

Anti-slip design

Keeps beams firmly in place to prevent shifting during transport.

Quick installation

Simple setup and removal save time during loading and unloading.

Application

Cargo decking beams are used across logistics and transportation to improve load stability and make better use of trailer space. By creating a second loading level and securing goods in place, they help reduce cargo damage, increase efficiency, and support more organized transport operations.

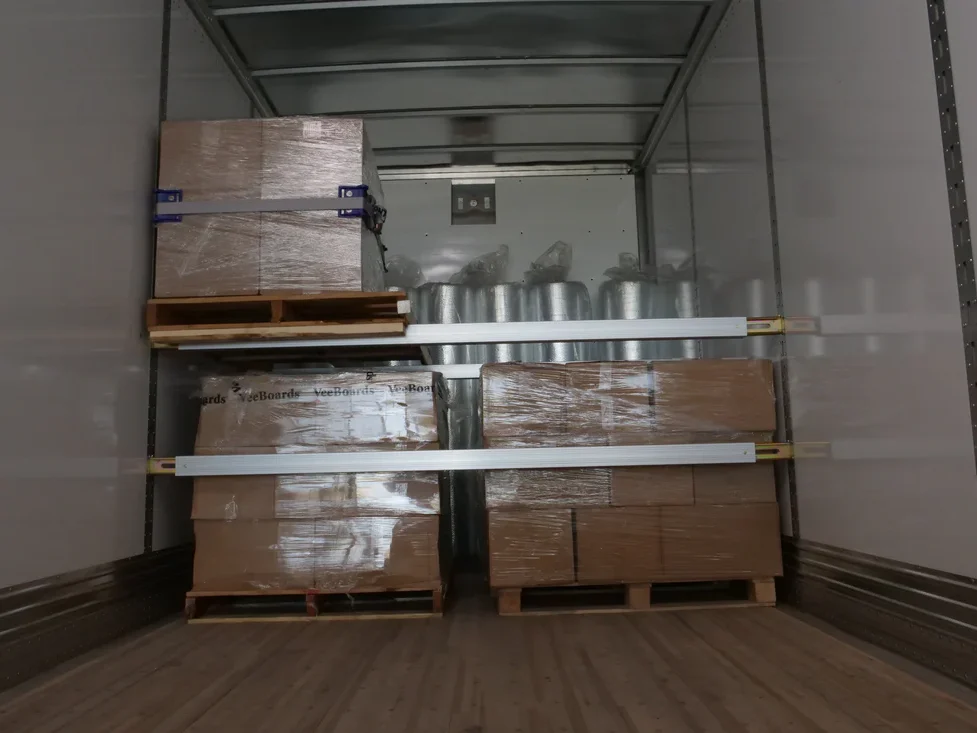

Box trucks and dry cargo trucks

Create a stable second deck to separate and secure different types of goods during transit.

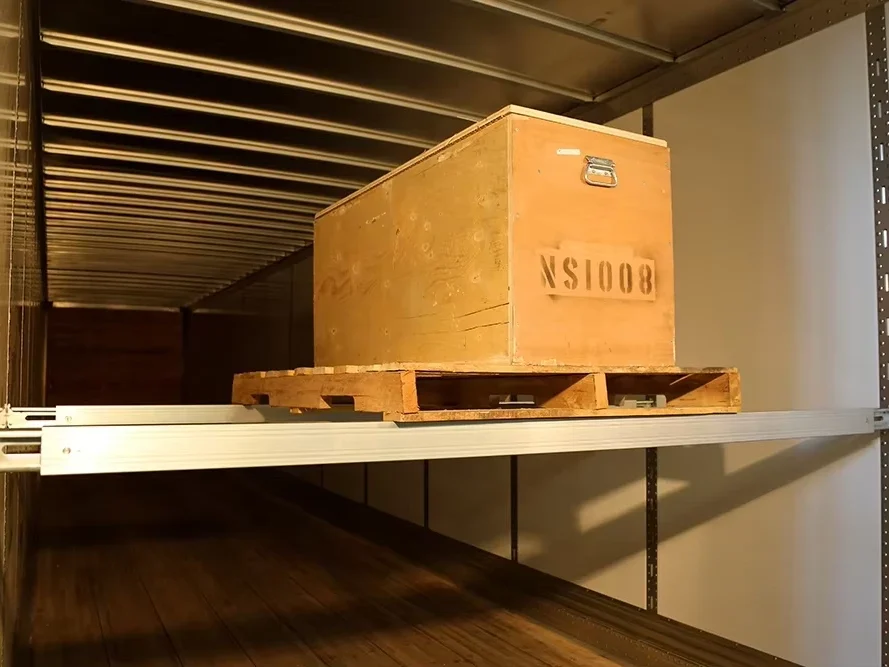

Logistics and distribution fleets

Improve loading flexibility and maximize vehicle utilization across varying shipment sizes.

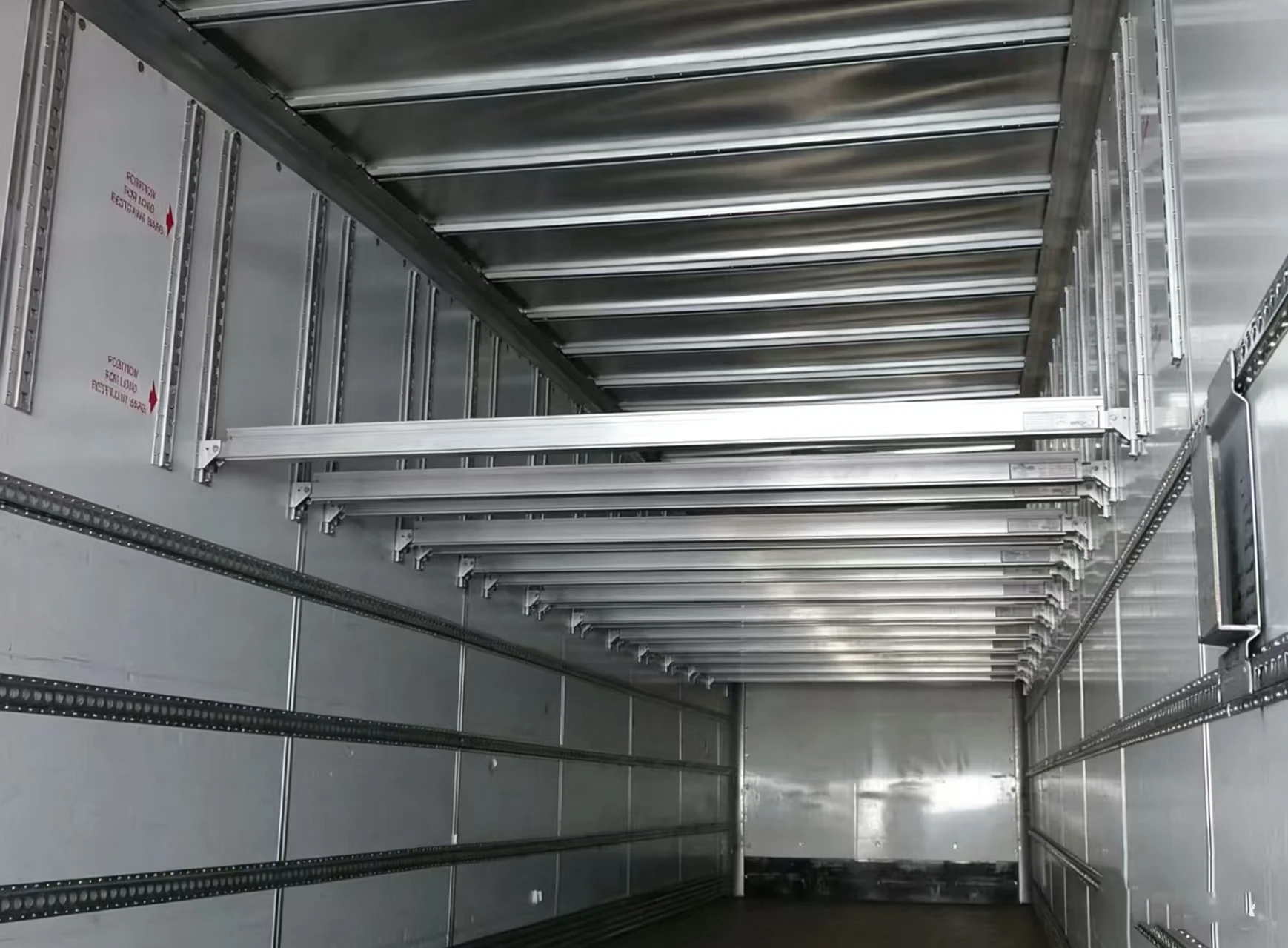

Trailer transport
systems

Prevent cargo shifting and optimize vertical space in long-
haul transportation.

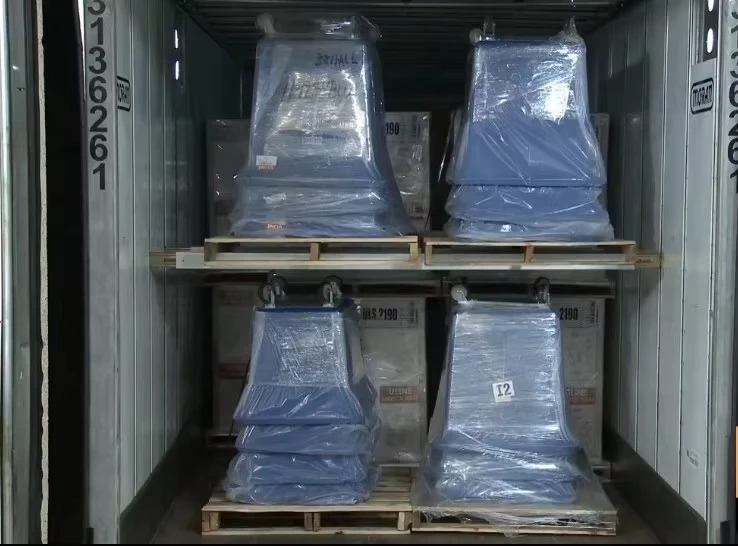

Warehouse and delivery operations

Enable faster, more organized loading and unloading while protecting goods from damage.

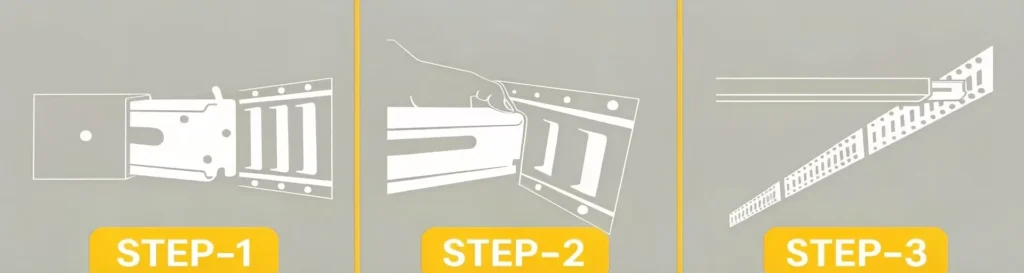

How to Use Decking / Shoring Beams?

Using E-track decking/shoring beams is simple and efficient, allowing you to secure cargo and create multi-level loading with ease:

Determine the Position

Place the beam between the E-track rails and select the appropriate height based on your cargo layout or decking requirements.

Install & Lock

Insert both ends of the beam into the E-track slots and engage the locking mechanism (lever or pin) until it is securely locked in place.

Adjust & Check

Make minor adjustments to ensure a tight, secure fit with no movement. Apply pressure to confirm the beam is firmly locked and stable.

FAQs

Get clear answers to common buying questions to help you choose the right
solutions for your transport needs.

Yes, we do provide custom manufacturing and OEM services to meet your specific requirements. Please contact us to discuss your needs with your idea(s), drawing(s) or actual sample(s); or existing items with custom logo(s).

Our standard terms are 50% deposit by T/T, with the remaining 50% paid before shipment.

We commonly offer EXW and FOB terms, depending on your logistics preference.

Production typically takes 15–30 days after receiving the deposit, depending on order quantity and specifications.

Yes, our decking beams feature adjustable lengths to fit different truck and trailer sizes.

Yes, we can produce according to your samples or technical drawings.

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Yes, we offer E-track compatible beams for quick installation and secure positioning inside trailers.
