Jack Load Bar | Adjustable Cargo Load Stabilizer for Trucks & Trailers
The Jack Load Bar, also known as a Cargo Load Bar, Load Jack, or Cargo Load Stabilizer, is designed to provide vertical cargo support inside trucks, trailers, vans, and shipping containers. Unlike traditional horizontal cargo bars, Jack Load Bars stabilize freight from floor to ceiling, helping prevent cargo shifting, tipping, or collapsing during transportation.
Heavy Duty Jack Load Bars for Safe Cargo Stabilization
Built for heavy-duty cargo control applications, our Adjustable Jack Load Bars are widely used in logistics, freight transportation, moving services, and warehouse operations. With adjustable heights, strong steel construction, and anti-slip foot pads, they offer reliable cargo stabilization for different vehicle types and load configurations.
Features
Grey Whale manufactures heavy-duty Jack Load Bars designed to provide reliable cargo stabilization and vertical load support for trucks, trailers, vans, and shipping containers. With durable steel construction, adjustable sizing, and a quick-locking mechanism, our cargo bars help improve transportation safety, prevent load shifting, and increase loading efficiency across various logistics applications.
Flexible Adjustable Design
We offer multiple adjustable length options to fit different trailers, trucks, and containers for versatile cargo securing.
Heavy-Duty Load Support

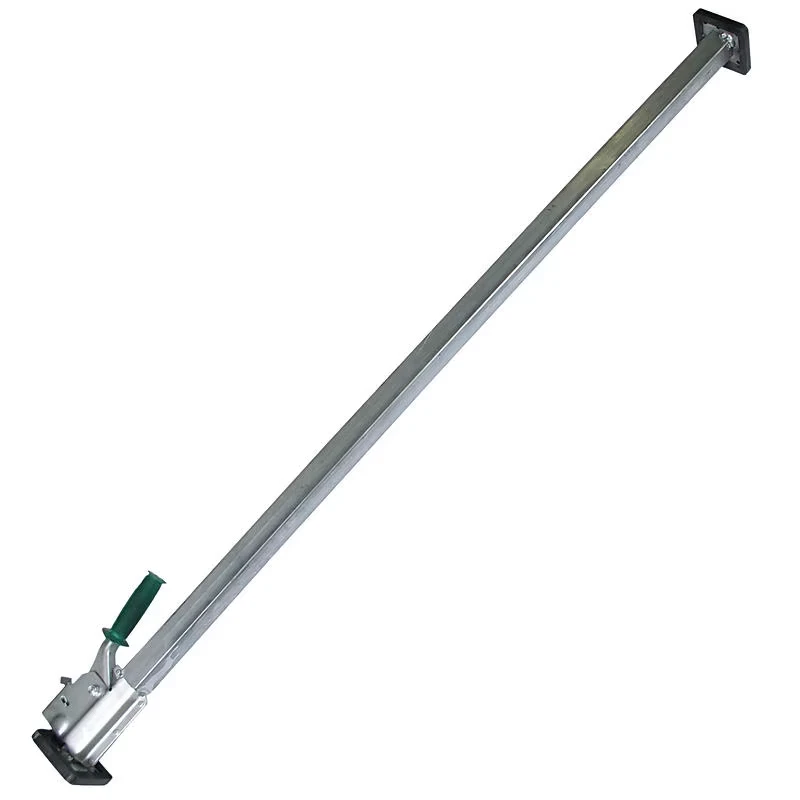

Jack Load Bars are built with high-strength steel square tubing to provide superior stability for stacked or unstable cargo.

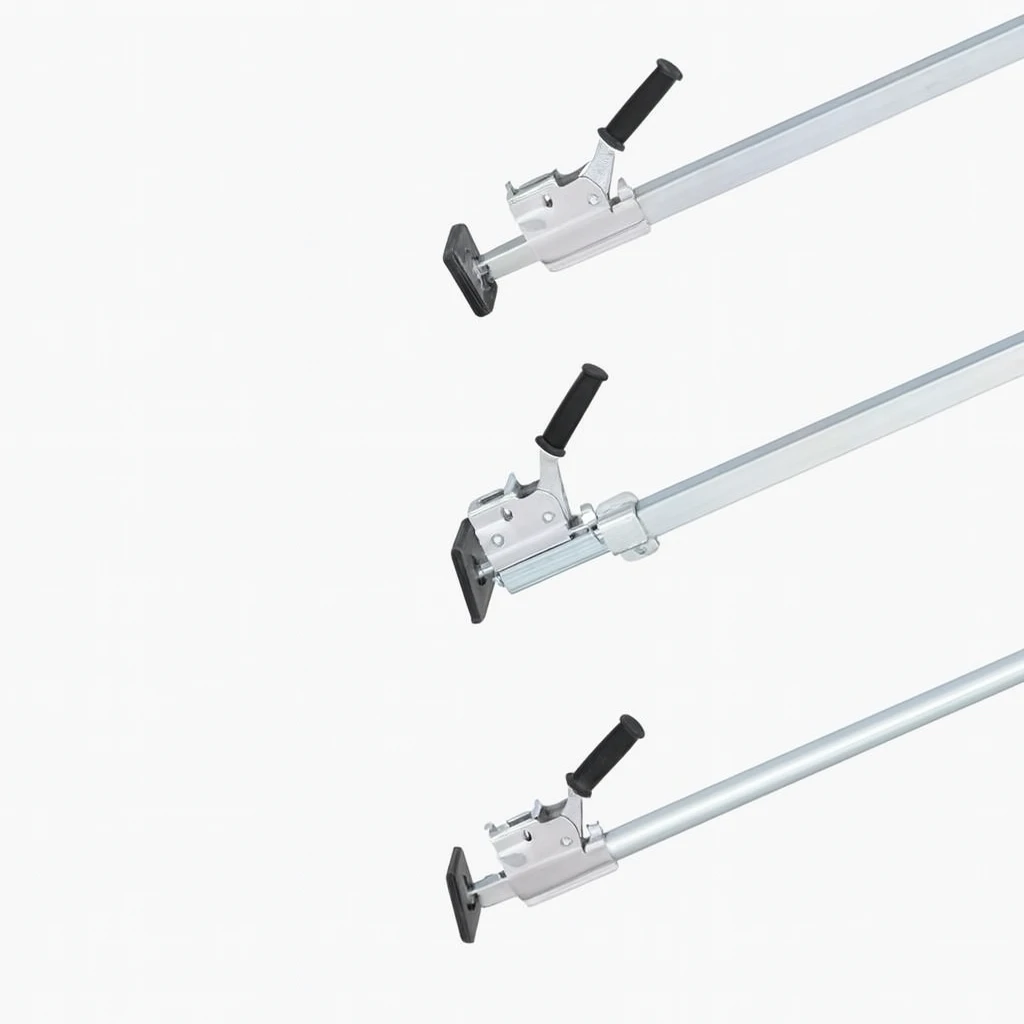

Quick Locking Operation
Our integrated jack mechanism allows fast adjustment, secure locking, and easy release, helping reduce loading time and improve efficiency.
Non-Slip Surface Protection
We use durable rubber foot pads to enhance grip while protecting trailer walls and container interiors from scratches or damage.
Specifications
Jack Load Bar Sizes & Models
Jack Bar Insert Square Tube and Bolt on Foot Pads
| Item No. | Size (in) | Length (in) | Weight (kgs) |
| JB101S | 1.5″ × 1.5″ | 86″ – 104″ | 6.4 |
| JB102S | 1.5″ × 1.5″ | 86″ – 107″ | 6.5 |
| JB103S | 1.5″ × 1.5″ | 86″ – 109″ | 6.6 |
| JB104S | 1.5″ × 1.5″ | 86″ – 115″ | 6.9 |
Jack Bar Welded Square Tube and Bolt on Foot Pads
| Item No. | Size (in) | Length (in) | Weight (kgs) |
| JB201S | 1.5″ × 1.5″ | 86″ – 104″ | 6.2 |
| JB202S | 1.5″ × 1.5″ | 86″ – 107″ | 6.3 |
| JB203S | 1.5″ × 1.5″ | 86″ – 109″ | 6.4 |
| JB204S | 1.5″ × 1.5″ | 86″ – 115″ | 6.7 |
| JB205S | 1.5″ × 1.5″ | 86″ – 119″ | 6.9 |
Square tube Jack Bar
| Item No. | Side Length (mm) | L (mm) | Weight (kgs) |
| SJB601 | 35 × 35 | 1880 – 2852 | 7 |
Applications of Cargo Load Bars
Grey Whale Jack Load Bars are widely used in trucks, trailers, shipping containers, cargo vans, and warehouse logistics systems to secure freight, prevent cargo movement, and improve transportation safety. Their adjustable structure and heavy-duty support make them suitable for various load stabilization applications across logistics, distribution, and industrial transportation.
Truck & Trailer Cargo Securing
Used to stabilize palletized goods, cartons, and stacked cargo during long-distance transportation.

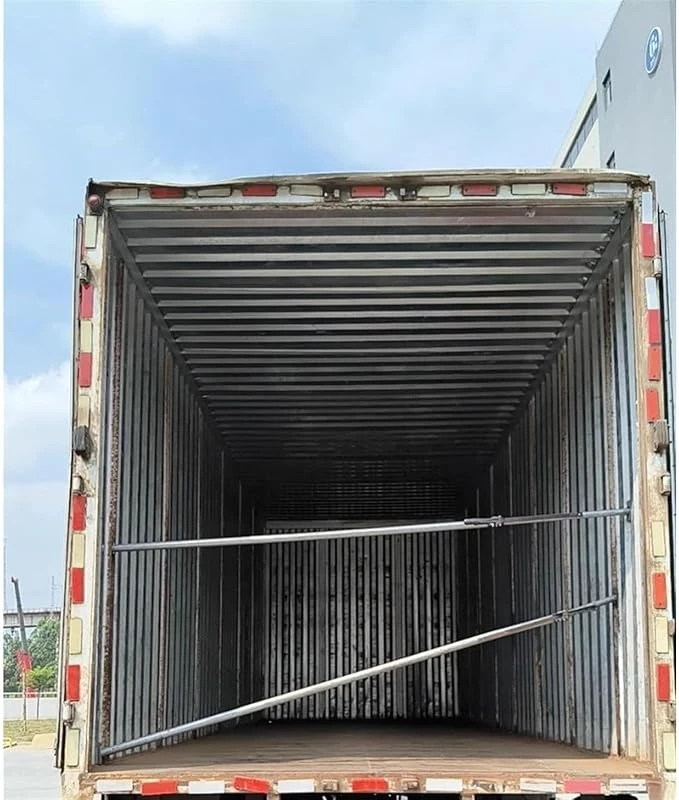

Shipping Container Load Support
Prevents cargo shifting inside containers during sea freight, rail transport, and international shipping.

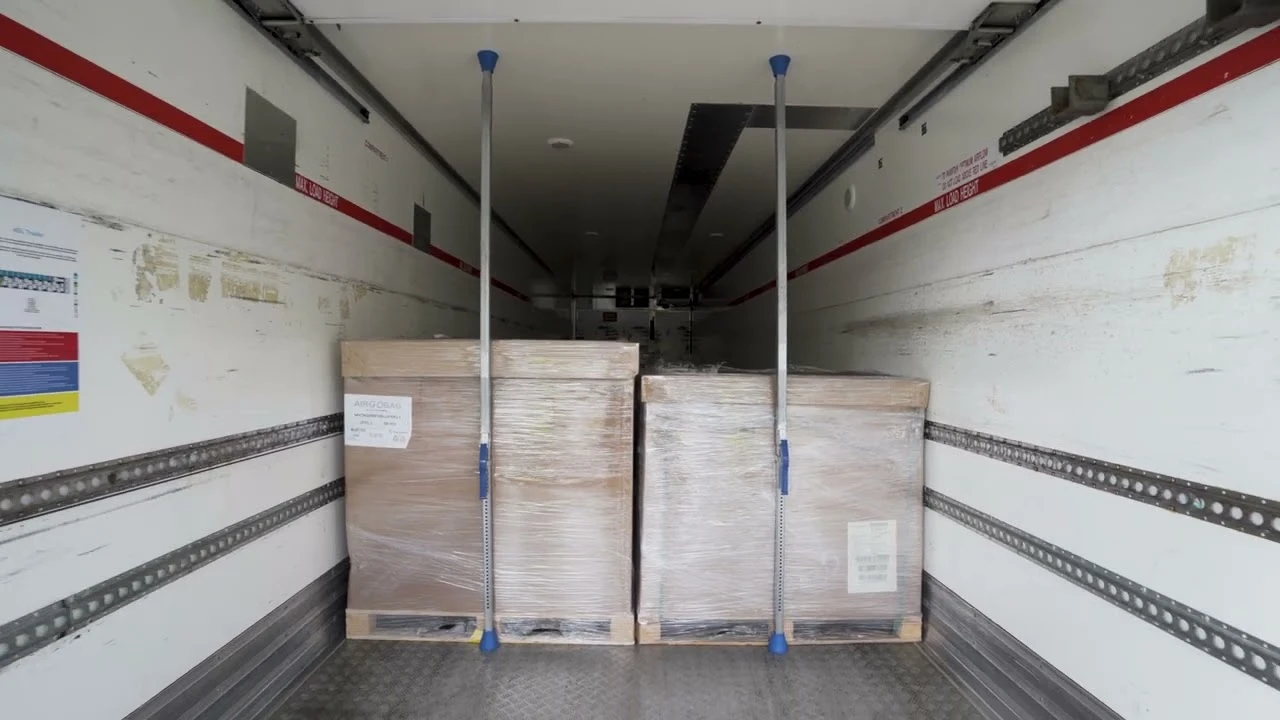

Cargo Van & Delivery Vehicle Protection
Helps organize and secure packages, tools, and equipment inside delivery vans and commercial vehicles.

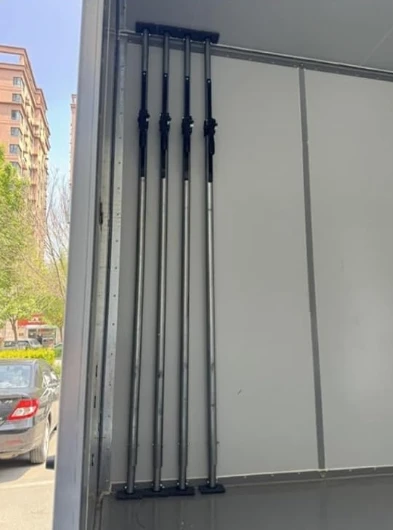

Warehouse & Temporary Storage Stabilization
Used in warehouses and distribution centers to temporarily secure stacked goods and improve storage safety.
How to Use？
Grey Whale Jack Load Bars are engineered for fast and secure cargo stabilization. Simply place the load bar between the trailer walls or cargo area, adjust the length to fit tightly, and lock the jack mechanism to apply firm pressure. The easy-adjust design allows operators to quickly secure cargo, reduce load shifting, and improve transportation safety in just a few simple steps.
Step 1
Lift the safety latch and turn the handle in the opposite direction.
Step 2
Extend the steel tube to the required length and position it against the vehicle wall.
Step 3
Turn the handle in the opposite direction until the safety latch locks in place, and stop when you hear the click sound.
Packaging & Shipping
Reliable packaging and flexible shipping to ensure safe and efficient delivery worldwide.
1. Secure Packaging
Each cargo load bar is protected with film, foam, or end caps to prevent scratches and impact. Products are packed in cartons or steel-frame pallets for safe handling and transport.
2. Optimized Container Loading
Efficient loading maximizes container space and supports mixed cargo to reduce shipping costs. Loading lists and photos are provided for easy verification.
3. Flexible Shipping Options
Supports EXW, FOB, CIF, DDU terms.
Available by sea (FCL/LCL), air, or rail. Standard products ship quickly, with clear schedules for bulk orders.
4. Global Export Experience
Exported worldwide with full compliance (e.g., fumigation, CE/ISO). Professional after-sales support ensures smooth usage after delivery.
